Ohaus VX Series Standard Floor Scale - VX32XW5000L

Save $200.00

Price:
Sale price$3,257.00 Regular price$3,457.00

Description

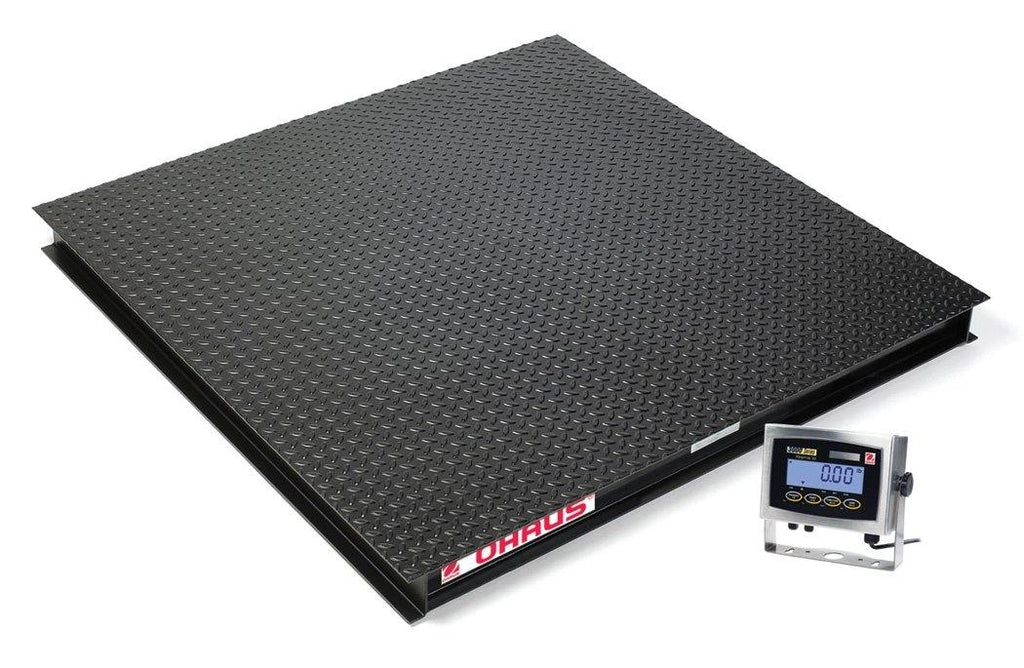

The OHAUS VX Series is a portable low-profile floor platform and indicator scale package. It is the ideal solution for freight consolidators, forwarders, processing plants, resellers, shipping and receiving departments, as well as startup businesses.

Complete with durable T32XW Washdown Indicator, the VX Series Floor Scales display in lb or kg, include a counting mode, geographical gravity correction for quick adjustment to local conditions, and the scale is NTEP certified (2500L and 5000L models only).

  • Durable epoxy painted steel frame and platform with NEMA4X/IP65 stainless steel indicator, NEMA4X/IP67 sealed stainless steel junction box and IP67 sealed loadcells
  • Includes internal rechargeable battery
  • Modes for weighing and counting, includes RS232 output for printing or connection to a PC
  • 1 Year Warranty

Literature

Manual

Ohaus - VX32XW5000L
Capacity 5,000 lbs
Readability 1 lb
Pan Size 122cm x 122cm / 48" x 48"
Applications Shipping and receiving, OEM machinery, Drumfilling, Batching/Filling, Inventory control
Display Dimensions (L x W x H) 8.3 x 2.8 x 5.8" / 21.2 x 7.1 x 14.9 cm
Display Material 304 stainless steel, NEMA4X/IP66 dust and water protection
Resolution NTEP 5000d
Platform Material Painted Carbon Steel, treaded surface, fixed top plate, thickness 1/8"
Load Cell 4 x Shear Beam, IP67, nickel plated alloy steel
LC Output Impedance / Excitation Voltage 350 Ω ± 3 Ω / 10VDC recommended ~15VDC max
Junction Box Side panel access, IP65 plastic case with 25' indicator cable
Platform Dimensions (L x W x H) 48 x 48 x 4.5" / 122 x 122 x 11.5 cm
Safe End Load Capacity 100% of maximum capacity
Maximum Central Load 100% of maximum capacity
Approvals NTEP 5000d, Class III
Feet 4 x fixed bolt design, adjustable height
Operating Temperature 50°F to 104°F / 10 °C to 40 °C
Weighing Units lb, kg, oz, g, lb-oz
Display 1" / 25 mm high, 6-digit, 7-segment, bright white backlit LCD
Keypad 4-button, raised with tactile positive feedback membrane switches
Stabilization Time Within 2 seconds
Auto-zero Tracking Off, 0.5, 1 or 3d
Zeroing Range 0%, 2% or 100% of capacity
Span Calibration 5 lb or kg to 100% of capacity
Interface RS232C, bi-directional
Power 100-240 VAC / 50-60 Hz, internal power supply
